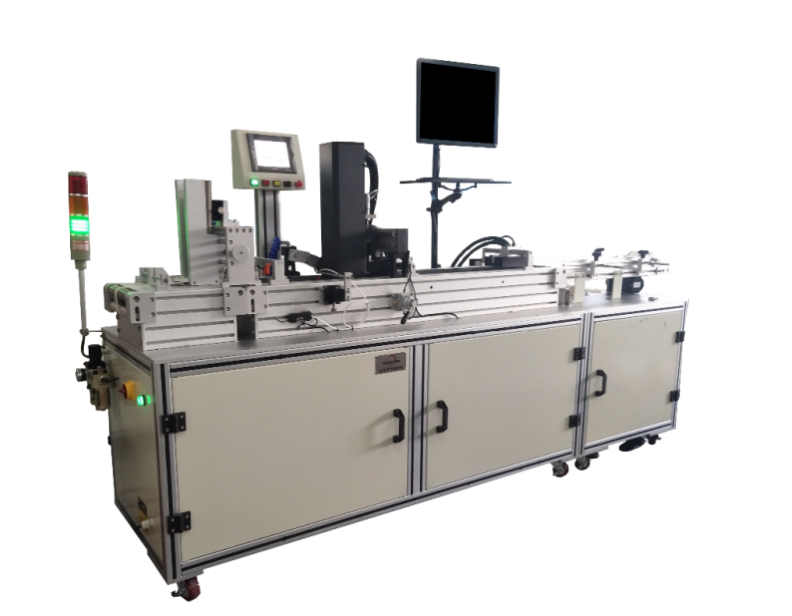

Single uv inkjet machine

TYPE:FI-1501

The equipment parameters

Equipment side:3600mm*700mm*1600(long*wide*high)

Equipment weight::about 200KG

The use of power:AC220V/3KW

Basic functions of equipment:Feeding → inkjet → receiving

Conveyor belt: Negative pressure type

Air pressure:0.5MPA

To adapt to the material:Flat sheet card.

Card side : thickness:0.15-0.3mm Maximum width:150mm

Maximum operating speed:0-80M/min

Inkjet machine parameter:

Maximum inkjet size:wide:54mm

Nozzle:ricoh G5

Distinguish rate:600/dpi

Paper feed precision:Maximum:±0.25mm

Ink Supply System:Central supply ink system

Port:Serial Port、Ethernet、electric eye、Quadrature Encoder Interface、

Print the nozzle port

Sensor:Support multiple external sensors(NPN type、contact type)

Spray print object:Dynamic text、counter、date、Dynamic bar code、Static

Text、picture（Dynamic）

bar code type:one dimensional code(EAN28、Code25、Code39、Code93、

Code128、GS1Databar and so on)

QR code(PDF417、DataMatrix、Maxi Code、QR Code and so on)
