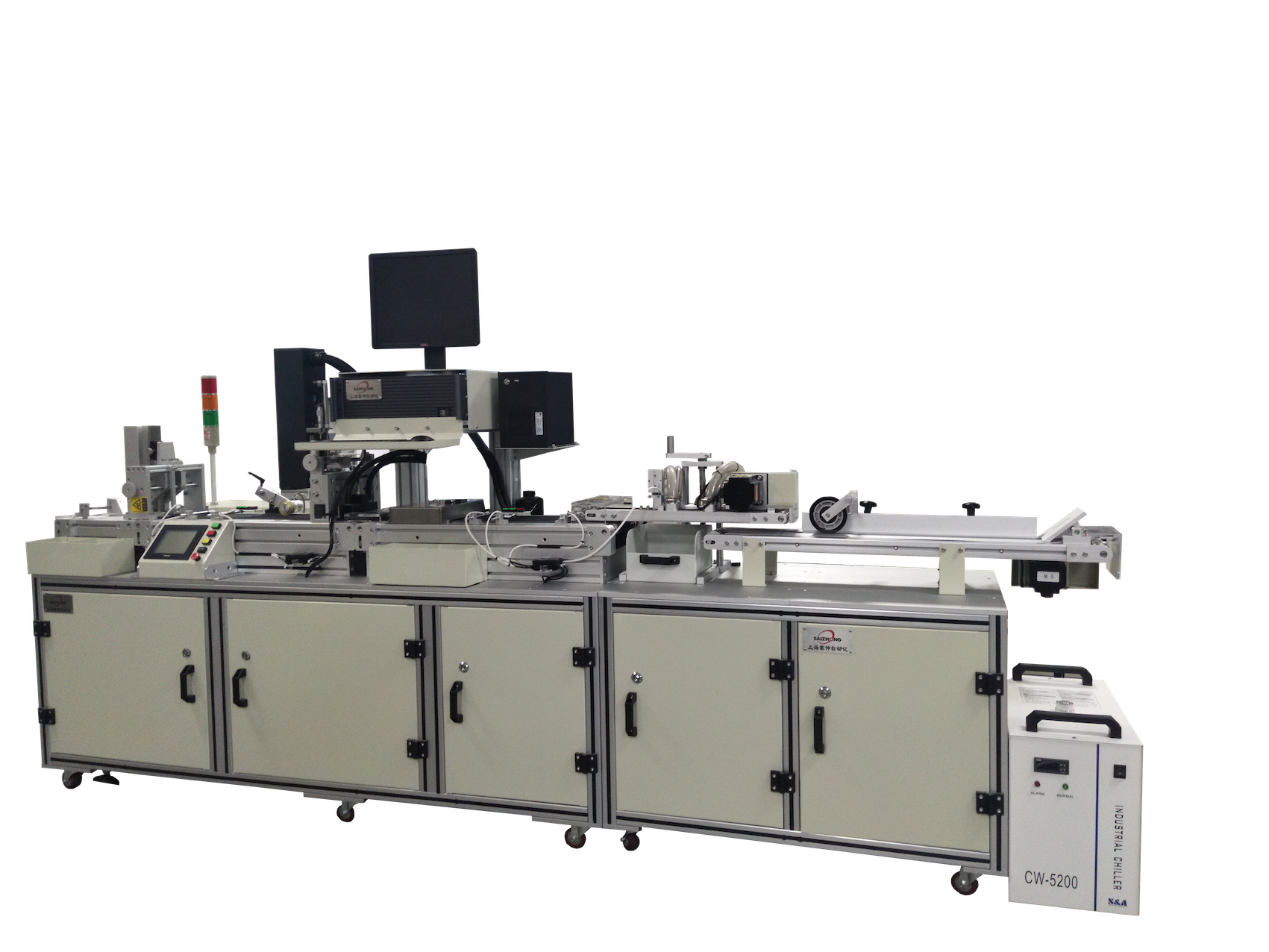

Single encoding inkjet checking machine

TYPE:FH-150X

The equipment parameter:

Equipment size: 3650mm*700mm*1600mm(length * width * height)

Weight: about 200kg

Voltage: AC220V / 2 kw

Paper accuracy: 0.25mm Max

Paper card size: thickness 0.15-3mm, maximum width 150mm

Running speed :80m/min

Equipment function: feeding, encode, uv print, checking, emliminate and collect

Software functional parameters:

Write code mode: database write code mode

LOCK tag mode:  1.LOCK EPC           2.LOCK USER

                          3. LOCK ACCESSPWD   4.LOCK KILLPWD

Write code function: call database write code according to bar code, import database write code

Verification system: SAIYU system

Check function:  1. Check bar code data and EPC data

                        2. Check database data with EPC data

Data saving function: export data Barcode, EPC, TID, USER, RCSSI, date and time data to save EXCEL file

Function parameters of code spraying:

Sprinkler head: ricoh 5

Maximum print width: 54mm

Resolution: 600dpi

Object: dynamic text, counter, date, dynamic bar code, static text, picture (dynamic)

Bar code type: 1d code (EAN28, Code25, Code39, Code93, Code128, GS1Databar)QR Code (PDF417, DataMatrix, Maxi Code, QR Code)

Other features:

Emliminata function: when bad labels are detected, remove them to the waste box

General receiving: conveyor belt receiving method

Visual system

Camera detects print content, omissions, smudges

Whether the bar code and QR code are correct
