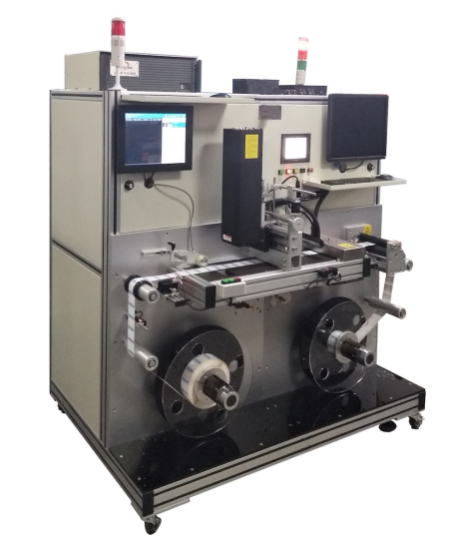

Roll uv inkjet machine

TYPE:RI-1501

The equipment parameters

Equipment side:1600mm*1100mm*1600(long*wide*high)

Equipment weight:about 200KG

The use of power:AC220V/3KW

Label plate maximum diameter 400mm label width maximum 150mm

Air pressure:0.5MPA

To adapt to the material:roll stickers tags

Maximum operating speed:0-50M/min

Inkjet machine parameter:

Maximum inkjet size:wide:54mm

Nozzle:ricoh G5

Distinguish rate:600/dpi

Ink Supply System:Central supply ink system

Port:Serial Port、Ethernet、electric eye、Quadrature Encoder Interface、Print

the nozzle port

Sensor:Support multiple external sensors(NPN type、contact type)

Spray print object:Dynamic text、counter、date、Dynamic bar code、Static Text、

picture（Dynamic）

bar code type:one dimensional code(EAN28、Code25、Code39、Code93、

Code128、GS1Databar and so on)

QR code(PDF417、DataMatrix、Maxi Code、QR Code and so on)

Image detection function:

Detection function: 1. Whether printing is offset

2. Read and detect one-dimensional code and two-dimensional code

Inspection conditions :1. Fixture fixation (accurately appear within the camera field of vision)

2. Less impact of external environment (light, machine vibration)

3. Ensure that the camera is at the same height from the product surface
