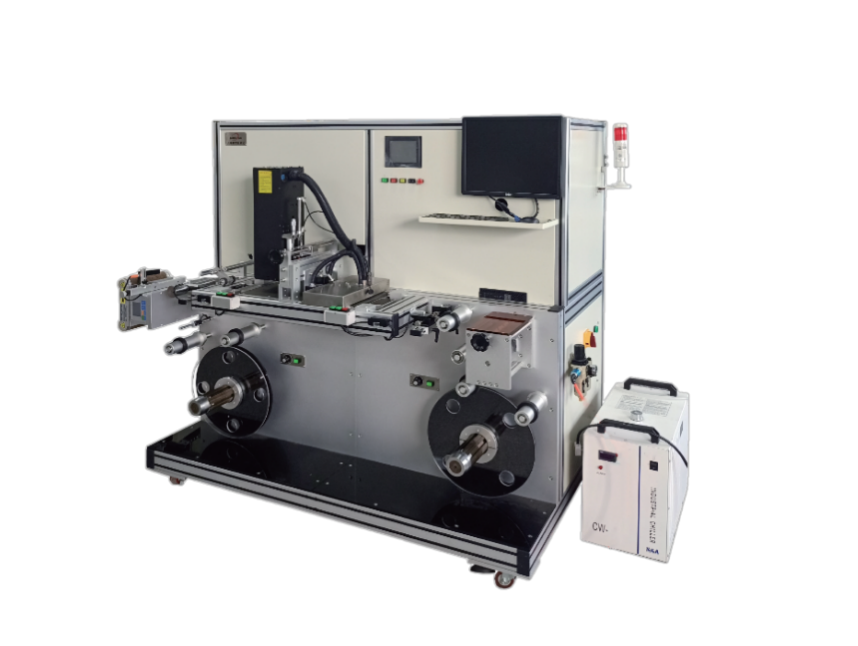

Roll encoding inkjet checking equipment

Model:RH-1501

Equipment functions: discharge tray, correction and correction, puller drive label movement, RFID reading and writing, UV printing, data detection, automatic receiving

Scope of application:

RFID roll-to-roll self-adhesive labels and bills

Applicable product size: (standard machine parameters, can be customized according to customer conditions)

1, self-adhesive label: 30-150mm wide, the longest 250mm

UV printer performance

Nozzle: Ricoh G5, resolution: 600/dpi

Maximum inkjet size: 54mm printing width

Software features: Support pdf document free choice printing order, support PFD paging code

Paper accuracy: Max. ±0.25mm

1, running speed: 50 meters /min

2, winding tension (adjustable tension)

3, count, arrive, pause, start (can be set)

4, can increase the appearance image system (detect the appearance printing quality)

Functional characteristics

RFID Read and write detection system (software functions can be customized)

Code write mode: database code write mode

Code writing function: Call database code writing by bar code, import database code writing

Verification system: bar code gun can be attached

Verification function: 1, bar code data and EPC data check

2. Check the database data with EPC data

Data saving function: Export data that has been written and save it as an EXCEL file
