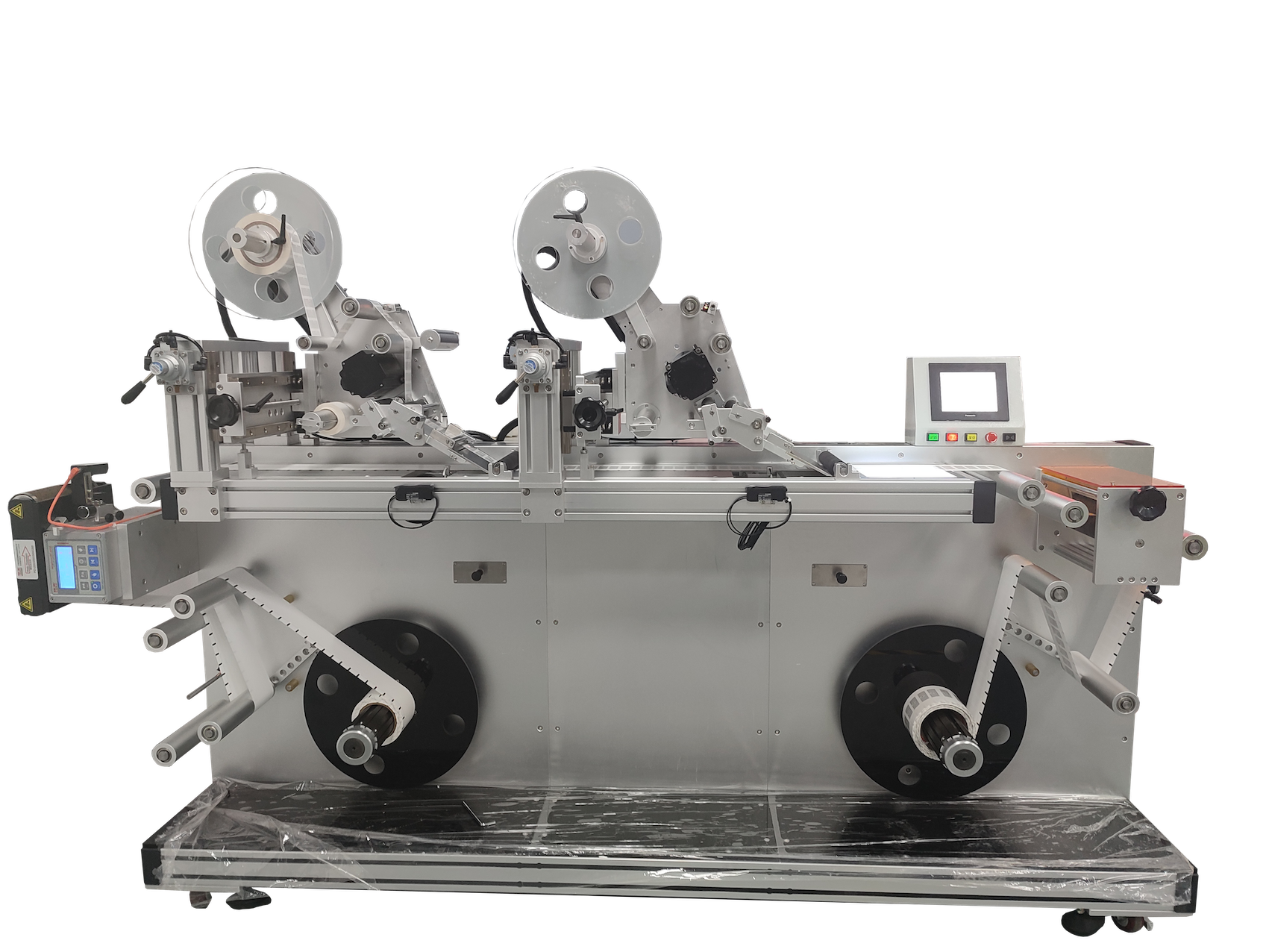

Roll Double head labeling equipment

TYPE：RT-1502

The equipment parameters:

Equipment size: 1600mm*600mm*1700mm (length * width * height)

Weight of equipment: about 200KG

Power used :AC220 V/ 1.5kw

1. Volume to volume device parameters

Maximum label diameter: 400mm

Maximum tag width: 150mm

Running speed: 0-30 m/min

Operation mode: continuous and progressive

The device puts the reel and reels: air expansion type

Pull shaft: mechanical bias type

Suitable material: roll electronic label (sticker or INLAY) label

Labeling machine device

Maximum tag width: 120mm

Maximum diameter: 320mm

Adjustment mode :(before/after/left/right adjustment)

Label accuracy: 1. Below 10 meters: ± 0.5mm

                       2. Below 20 meters: plus or minus 0.6mm

                       3. Below 30 meters: plus or minus 0.75mm
