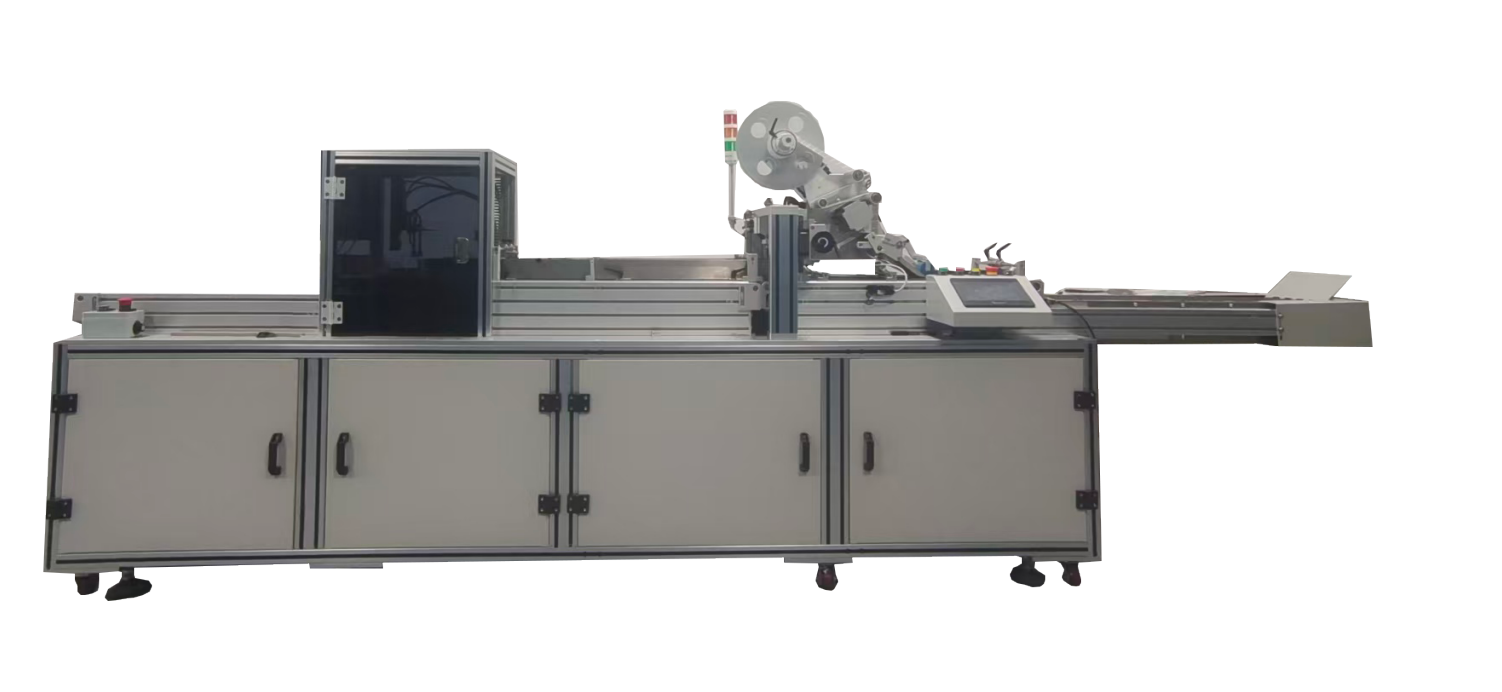

Plastic bag labeling equipment

Model ：FC-350

Labeling speed：0-30m/min

Labeling accuracy: 0.5 - 1mm

Maximum size of label:90mm*60mm

Inner diameter of the label roll：76mm

Outer diameter of the label roll：320mm

Minimum size of the sticker：30*20mm

Width of the conveyor belt：300mm

Bag size range：Width maximum 250mm, minimum 170mm

Length maximum 350mm, minimum 200mm (The larger the size, the lower the efficiency)

Production efficiency: Plastic bag 5000 per hour

                                   Car: 4000 per hour

Voltage：220V

Power：1.4KW

Atmospheric pressure：0.5 MPa

Equipment dimensions (length * width * height) approximately：3932mm*840mm*1470mm

Equipment weight：300kg
