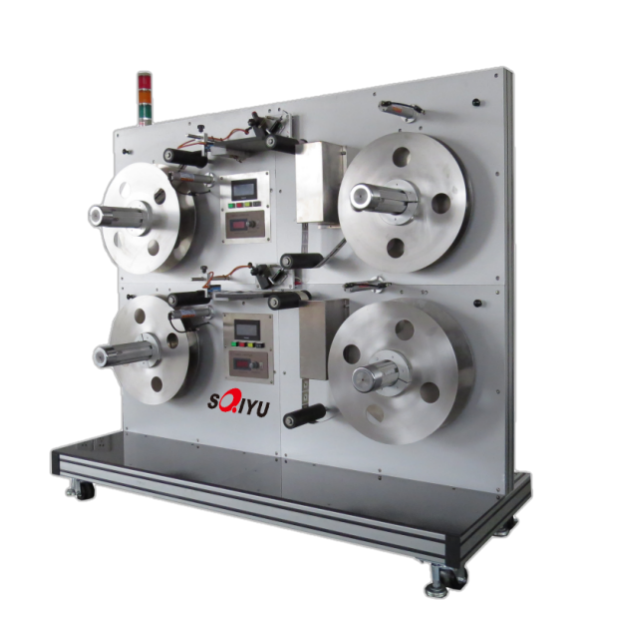

EAS Anti-theft label checker

TYPE:EAS-402

Device functions:

Scope of application:

RFID roll-to-roll self-adhesive labels and bills

Applicable product size: (standard machine parameters, can be customized according to customer conditions)

1, self-adhesive label: 30-150mm wide, maximum roll diameter 400mm

Main indicators of the EAS system

Check frequency range: 7.8MHZ to 8.6MHZ

Center frequency: 8.2MHZ

Sensing distance: 1-10mm

Antenna port: inductor antenna

Communication interface: RS232 serial port (RX/TX/GND)

Functional characteristics

1. Running speed: 40m /min

2, defective product marking (dotting mechanism/small character inkjet machine)

3. Tension adjustment of winding device (adjustable tension)

4, lack of material, broken mark (automatic alarm)

5, count, arrive, pause, start (can be set)

6. Receiving materials neatly
